M5 Thread to Barbs, Adjustable Position Tee

CAD Model
Message

Related Products

Replacement O-Rings

O-Rings in all available materials for both body and stud seals.

Configure Here
Replacement Studs

Studs for all available materials.

Configure Here
Polyurethane Tubing

Polyurethane tubing is recommended for use with our barbed fittings. It provides excellent flexibility and resistance to kinking.

Configure Here

Overview

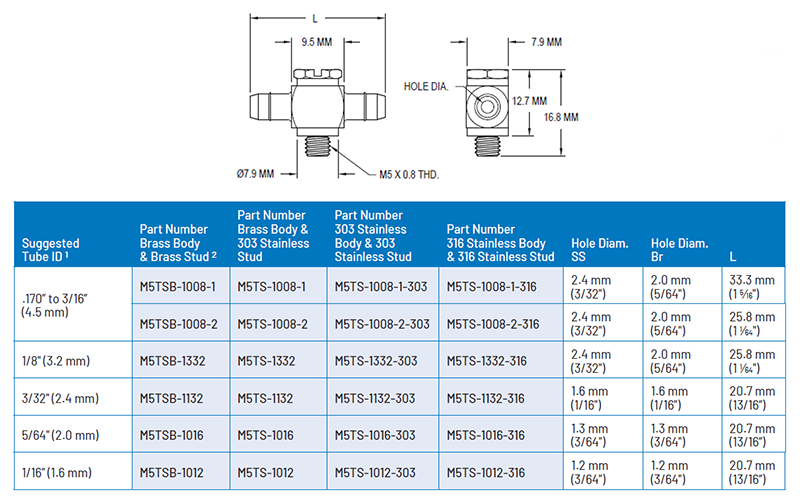

Description: Adjustable position tee fitting, with M5x0.8 external thread and built-in barbs.

Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.

Features

  • Beswick’s trademark O-ring seal design provides a leak-tight joint.
  • Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.

Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
Note: Brass stud on M5TSB does not have a screwdriver slot.
