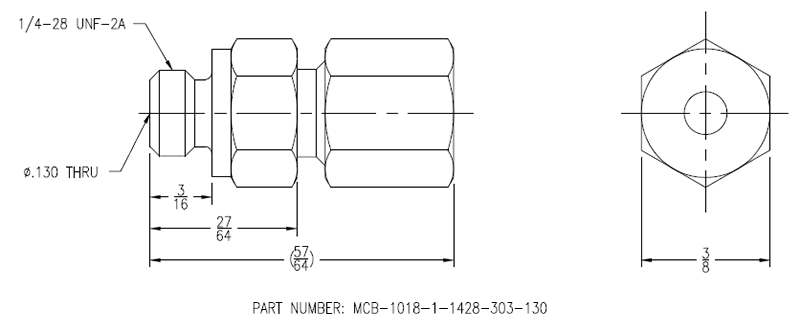

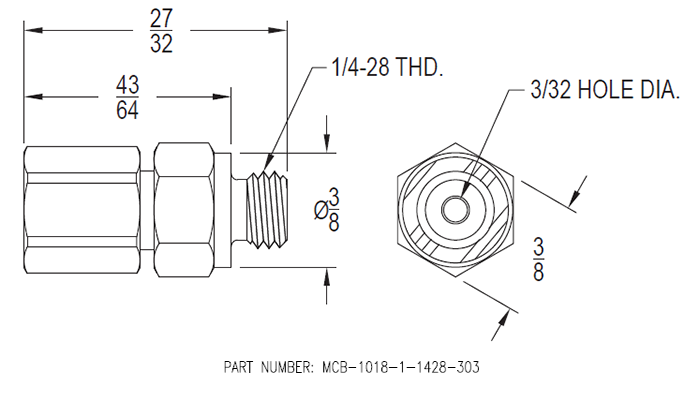

1/4-28 Thread to 1/8 Inch O.D. Tubing, Straight Compression

CAD Model
Message

Related Products

Single Piece Replacement Ferrules

Symmetrical and Asymmetrical single piece ferrules. Compatible with brass MCB-1018-1428 and MCB-1018-1-1428 models. PEEK replacement ferrules for MCB-1018-1428-P models.

Configure Here
Two Piece Replacement Ferrules

Front and rear ferrules for metal and plastic tubing. Compatible with stainless steel MCB-1018-1-1428-303 and MCB-1018-1-1428-316 models.

Configure Here
Replacement Nuts

Compression nuts for all available materials.

Configure Here
Pre-Swage Tools

Tools for pre-swaging ferrules onto tubing prior to assembling fitting.

Configure Here
Replacement O-Rings

O-Ring seals in all available materials.

Configure Here

Overview

Description: Miniature compression fitting with ¼-28 external thread, for 1/8″ OD stiff plastic or metal tubing.

Max Pressure Rating: 1,000 psig in brass and 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor.

Features

  • Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope.
  • Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings.
  • Easy to install without special tools.
