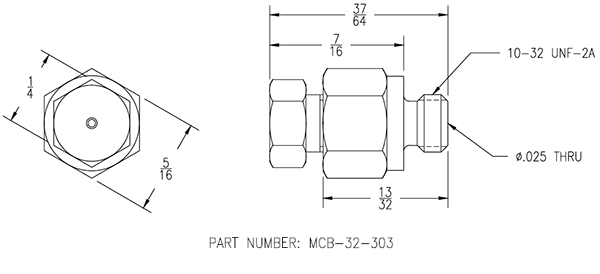

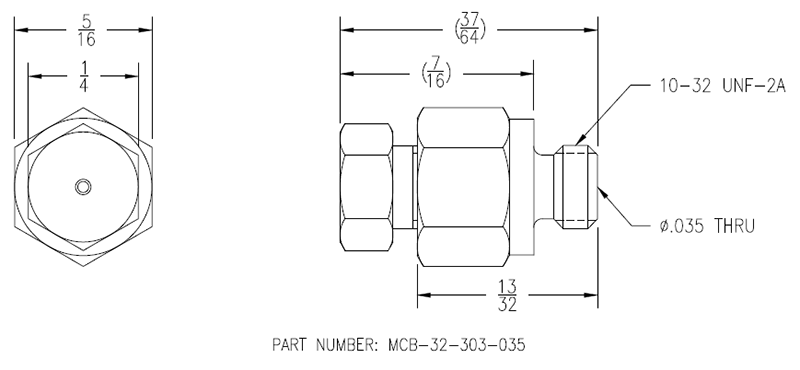

10-32 Thread to 1/32 Inch O.D. Tubing, Straight Compression

CAD Model
Message

Related Products

Two Piece Replacement Ferrules

Front and rear metallic ferrules for metal and plastic tubing.

Configure Here
Single Piece Replacement Ferrules

Single piece PEEK ferrules.

Configure Here
Replacement Screws

Compression screws for all available materials.

Configure Here
Replacement O-Rings

O-Ring seals in all available materials.

Configure Here

Overview

Description: Miniature compression fitting with 10-32 external thread, for 1/32″ OD stiff plastic or metal tubing.  Two piece metallic ferrule or single piece PEEK ferrule option.

Max Pressure Rating: 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor.

Features

  • 303 Stainless Steel construction.
  • Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope.
  • Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings.
  • Easy to install without special tools.
